UPR 3X3 POST – 42D X 192H
$231.98
- Color: Green
- Interchangeable style keyhole punched uprights
- 3″ x 3″ post
- Vertical beam adjustment on 2″ increments
- Welded bracing
- Side punching for accessory attachment

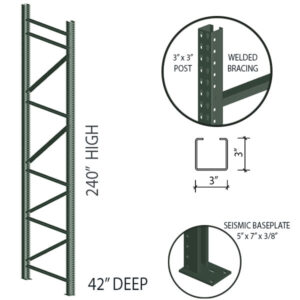

- Larger seismic 5″ x 7″ baseplate
- Anchors required – Click here to order anchors
- For use in low seismic areas
- Additional information
- Description
Additional information
| Weight | 115.171 lbs |
|---|---|
| Dimensions | 0.000 × 42.000 × 192.000 in |
| Capacity | 25177 |
| SKU | 1000362341-126 |
| Color | 126-UNARCO GREEN |
Description
- Upright Depth = 42” Deep
- Upright height = 192″ + baseplate thickness
- Open-back post = 3” x 3” with square side-punching for bolting and attaching miscellaneous rack components
- Standard teardrop design that is compatible with most major manufacturer’s beams.
- Welded design – Ready to install – Just stand, plumb and anchor
- Purchase 5″ x 7″ x 12g available shims to keep pallet rack installation in-tolerance and plumb.
- Check local building codes for required anchoring – Click here to order anchors
- Upright capacity = 25,177 lbs. per frame based on maximum unsupported length, which is the measurement of the distance between the floor and the top of the first beam or the maximum spacing between beams.
- Upright capacity value assumes that each column carries half of the frame load and is based on gravity loading only that is purely axial. Any condition where the axial load is accompanied by moment, the axial load capacity will be less. This will occur for non-symmetrical loading conditions.
- It is the rack user’s responsibility to properly maintain the racks to ensure that the carrying capacity of the racks is not reduced by damage and that changes to the rack configuration do not cause unsafe conditions. Please refer to the UNARCO Pallet Rack User Manual for guidelines.
- Stated capacity is for undamaged racks that are installed plumb. For installation reference follow the UNARCO Pallet Rack Installation Manual
- UNARCO rack designs conform to the latest Rack Manufacturers Institute (RMI) specifications and American Iron and Steel Institute (AISI) Cold Formed Steel Design Manual.
