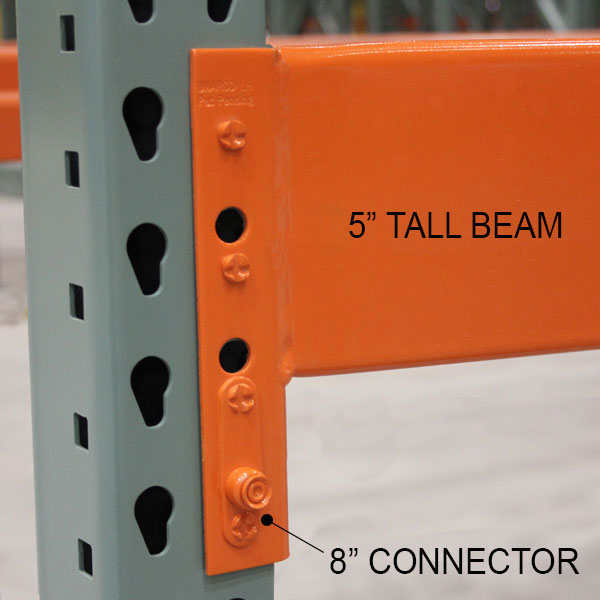

BEAM 5 H X 108L – 8IN CLIP
$53.02
- Color: Orange
- Beams lock into place with no hardware needed
- Vertical adjustment on 2″ increments.
- 2 beams are needed per level
- All capacities are stated as uniform load
- Step is 1-5/8″ tall to receive standard wire deck or 2×6 wood
- 4 stud connector with automatic locking device
- Additional information
- Description
Additional information
| Weight | 29.960 lbs |
|---|---|
| Dimensions | 108.000 × 2.750 × 5.000 in |
| SKU | 1000316530-178 |
| Capacity | 6039 |
| Color | 178-UNARCO ORANGE |
Description
- Beam length (actual storage space) = 108″
- Beam face height = 5″ tall with standard step height of 1-5/8” tall
- Beam Capacity 6,039 lbs. per pair, uniform load
- Standard teardrop design that is compatible with most major manufacturer’s uprights
- 4 heavy-duty studs and automatic locking device which locks into place when beam is properly seated
- Check available crossbars or wire deck to support product loads
- Please consult UNARCO Engineering for any shelf load over 10,000 lbs.
- UNARCO rack designs conform to the latest Rack Manufacturers Institute (RMI) specifications and American Iron and Steel Institute (AISI) Cold Formed Steel Design Manual
- Add a J-Pin for additional beam uplift protection
