BEAM 2.5H X 96L – 6IN CLIP
$35.15
- Color: Orange
- Beams lock into place with no hardware needed
- Vertical adjustment on 2″ increments.
- 2 beams are needed per level
- All capacities are stated as uniform load
- Step is 1-5/8″ tall to receive standard wire deck or 2×6 wood
- 3 stud connector with automatic locking device
- Additional information
- Description
Additional information
| Weight | 18.522 lbs |
|---|---|
| Dimensions | 96.000 × 2.750 × 2.500 in |
| Capacity | 2126 |
| SKU | 1000304061-178 |
| Color | 178-UNARCO ORANGE |
Description
- Beam length (actual storage space) = 96″

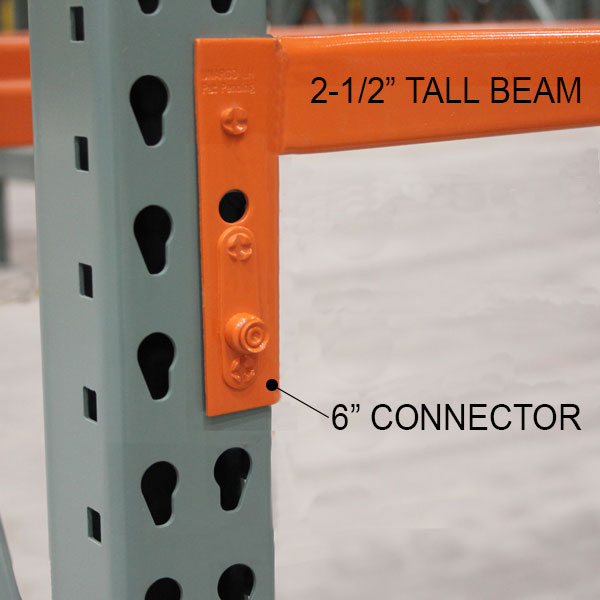

- Beam face height = 2.5″ tall with standard step height of 1-5/8” tall
- Beam Capacity 2,126 lbs. per pair, uniform load
- Standard teardrop design that is compatible with most major manufacturer’s uprights
- 3 heavy-duty studs and automatic locking device which locks into place when beam is properly seated
- Check available crossbars or wire deck to support product loads
- Please consult UNARCO Engineering for any shelf load over 10,000 lbs.
- UNARCO rack designs conform to the latest Rack Manufacturers Institute (RMI) specifications and American Iron and Steel Institute (AISI) Cold Formed Steel Design Manual
- Add a J-Pin for additional beam uplift protection
